Ricoh announce GXR Mount A12 for Leica M lenses


Ricoh has formerly announced the GXR Mount A12 (it was previously shown in Japan at the CIPA+ show earlier in the year). The Mount a12 allows the fitment of Leica M lenses and features a 12-megapixel APS-C CMOS sensor. The Mount A12 fits the standard GXR body and allows interchangeable lens/sensor modules (what Ricoh strangely call camera modules). The new Mount A12 features Red/Blue color shading correction (a common issue with rangefinder lenses as they sit close to the sensor) and has peripheral illumination correction. This maybe an alternative to anyone thinking of buying a secondhand Leica M8, though it's not likely to be cheap.

More information about the GXR can be at www.ricoh.com.

Press release:

Ricoh announces GXR MOUNT A12
A GXR lens mount unit featuring an APS-C size CMOS sensor

Tokyo, Japan, August 5, 2011—Ricoh Co., Ltd. (president and CEO: Shiro Kondo) today announced the development and planned September 9, 2011 release of the new product GXR MOUNT A12, a lens mount unit exclusively for the GXR interchangeable unit camera system. The body colour will be black only, and the planned monthly production volume is 3,000 units.

Introduced in December 2009, the GXR is a revolutionary interchangeable unit camera system in which lenses can be changed by mounting camera units that integrate lens, image sensor, and image processing engine into a single unit. In addition, utilizing its unique ability to accommodate interchangeable units other than camera units, the system can be expanded to include a variety of other devices.

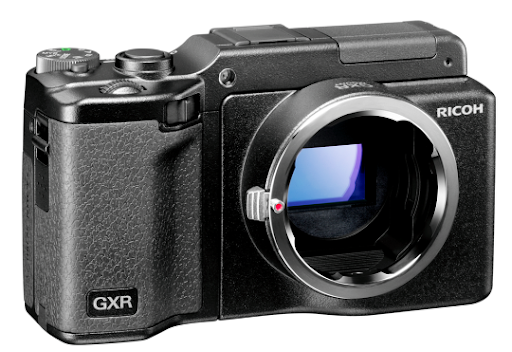

The new GXR MOUNT A12 is a lens mount unit made especially for the GXR. Featuring an APS-C size CMOS sensor and a newly developed focal plane shutter, this unit makes it possible to mount lenses such as Leica M lenses, and it provides various types of compensation and correction functions.

Main features of GXR MOUNT A12

1.    The newly adopted APS-C size CMOS sensor expands possibilities for high resolution and imaging power.
The adoption of a CMOS sensor with an optimized micro lens layout makes it possible to secure sufficient brightness levels even in the peripheral areas of the image.
The CMOS sensor used is 23.6mm × 15.7mm (APS-C size). It enables the shooting of high-quality images with smooth tone gradations as well as high definition and low noise.

2.Compatibility with a wide variety of lenses, including Leica M mount lenses.
Compatible with the Leica M mount, GXR MOUNT A12 can, of course, handle M-mount lenses, and if a conversion adapter is used many more types of mounts can also be accommodated.
A checking device is included for use in confirming whether or not your lenses are physically compatible.

3.Diverse new functions maximize the potential of the lens itself
In order to accommodate the photographer’s own preferences by adjusting for the distinctive characteristics of many different lenses, GXR MOUNT A12 can independently correct colouring at the corners. Colour shading correction is possible in a -4 to +4 range for both R and B.

Peripheral illumination correction is possible in a -3 to +3 range.
A distortion correction function is provided to correct for the distortion that tends to occur in the lens periphery. The photographer can select barrel and pincushion distortion and specify “strong,” “medium,” or “weak” for each.
A glass optical filter was adopted and made as thin as possible. It increases periphery image quality and suppresses field curvature.

4.High-precision focusing
A focus-assist function has been included in an effort to raise the accuracy of manual focusing. The photographer can select from two modes and check the focus by strengthening outlines and contrast.
Magnifying the screen image while shooting is an effective technique for focusing. The magnification can be done not only in the center but throughout the image. In addition, the image quality for 4x and 8x magnification has been further enhanced. The area to be magnified can be moved using the directional pad.

5.Two shutter methods are featured: newly developed focal plane shutter and electronic shutter
  ・With the focal plane shutter, settings of 1/4000 sec. to 180 sec. are possible.
With the electronic shutter, settings of 1/8000 sec. to 1 sec. are possible, and the photographer can shoot without worrying about shutter noise and vibration.

6.The wide range of functionality that characterizes the GXR series
My Settings enables a wide range of shooting functions to be specified in an instant. For the setting information storage, six patterns can now be stored in the body’s My Settings Box and six patterns can be stored in the SD card. This, along with the ability to change shooting conditions, further expands the photographer’s world of photo expression.
In manual exposure mode, the shutter speeds B (bulb) and T (time) can be selected. With B, the exposure continues while the shutter release button is pressed, and with T, the shutter release button is pressed to start and end the exposure. For both B and T, the exposure is automatically ended when 180 seconds have elapsed.
Information on the lens used can be put in the EXIF information. In the editing of My Settings information, lens name, focal length, and F value can be entered.
New scene mode options have been added for the easy enjoyment of a wide range of photo expression. The five new options are soft focus, cross process, toy camera, miniaturize, and high contrast B&W. The photographer can create a unique image by just pressing the shutter release button.
An electronic level utilizing an acceleration sensor.
An image flag function to enable the quick display of specific images from among those in the camera. Up to 20 images can be flagged.
For the exterior, we utilized die cast magnesium, which has a strong track record in the GR series, and we covered the surface with a corrosion-resistant "pear-skin" coating. The end result is a body with durability, light weight, and a superior feel in hand.
It is possible to shoot 1280 × 720 pixel HD movies.
* Note: When shooting movies of 1280×720 size, the use of an SD/SDHC memory card with an SD speed class of Class 6 or higher is recommended.

7.New options added
    We have created the new soft cases SC-75B and SC-75T, which are easy to open and close. With SC-75B, it is possible to shoot with the case attached to the GXR body.

GR MOUNT A12 options

Product                    Model
Soft Case B lower portion and strap    SC-75B
Soft Case T upper portion only        SC-75T

*All of the focal lengths in this release are converted to the equivalent values for a 35 mm film camera.
*SC-75T cannot be used as a case by itself. It must be used together with SC-75B.
*SC-75B and SC-75T are new options being introduced at this time.
*Functions when the GXR body is attached.



GXR MOUNT A12 Major Specifications



Effective pixels:
Approximately 12.30 million

Image sensor:
23.6 mm × 15.7 mm CMOS sensor (total pixels: approx. 12.90 million pixels)

Zoom:
Digital zoom: 4.0x (3.6x for movies)
Auto resize zoom: Approx. 5.9x (VGA)

Focus Mode:
Manual focus

Shutter speed:
Photographs: 1/4000 - 180 s, bulb, time (upper and lower limits vary according to shooting and flash modes)
Maximum flash sync shutter speed: 1/180 s
Movies: 1/2000 - 1/30 s

Exposure control:
Metering: TTL metering in multi (256-segment), center-weighted, and spot metering (TTL metering with auto exposure lock)
Mode: Aperture priority AE, manual exposure
Exposure compensation: Manual (+4.0 to -4.0 EV in increments of 1/3 EV or 1/2 EV), auto bracketing (-2 EV to +2 EV in increments of 1/3 EV or 1/2 EV)

Exposure range (auto mode, center-weighted metering):
Using standard lens (F2.5): 1.2 EV to 13.2 EV
(Exposure range for auto ISO calculated using values for ISO 100.)

ISO sensitivity (standard output sensitivity):
Auto, Auto-Hi, ISO-Lo, ISO 200, ISO 250, ISO 320, ISO 400, ISO 500, ISO 640, ISO 800, ISO 1000, ISO 1250, ISO 1600, ISO 2000, ISO 2500, ISO 3200

White balance:
Auto / Multi-P AUTO / Outdoors / Cloudy / Incandescent Lamp 1 / Incandescent Lamp 2 / Fluorescent Lamp / Manual Settings / Detail; white balance bracketing

Flash:
Method: TTL, manual, external auto (external flash GF-1 function)
Flash mode: Auto, Anti Red-eye, Flash On, Flash Synchro, Manual, Flash Off
Guide number: 9.6 (ISO 200 equivalent), 6.8 (ISO 100 equivalent)
Illumination angle: 24 mm (35 mm film camera equivalent)
Firing timing: 1st/2nd curtain sync
Other: External flash GF-1 compatibility

Shooting mode:
Auto / Program Shift / Aperture Priority / Shutter Priority / Manual / Scene (Movie, Portrait, Sports, Landscape, Nightscape, Skew Correction, Miniaturize, High Contrast B&W, Soft Focus, Cross Process, Toy Camera, Electronic Shutter) / My Settings

Continuous mode:
Number of pictures shot in Continuous (Picture Size: RAW):
Noise Reduction on weak or off: 4 pictures
Noise Reduction on strong: 3 pictures
Noise Reduction on MAX: 3 pictures

Number of pictures shot in M-Cont Plus (1 set):
HI (1280 × 856): 30 pictures (24 frames/sec.)
LO (4288 × 2848): 15 pictures (2.2 frames/sec.)

Compression ratio *:
FINE, NORMAL, RAW (DNG) *2

Image size (pixels):
Photographs:
16:9    4288×2416, 3456×1944
4:3    3776×2832, 3072×2304, 2592×1944, 2048×1536, 1280×960, 640×480
3:2    4288×2848, 3456×2304
1:1    2848×2848, 2304×2304

Movies:
1280×720, 640×480, 320×240

File size (approx.):
RAW:
16:9    NORMAL: 17,800 KB/frame, FINE: 19,515 KB/frame, VGA: 15,587 KB/frame

4:3    NORMAL: 18,387 KB/frame, FINE: 20,157 KB/frame, VGA: 16,124 KB/frame

3:2    NORMAL: 20,946 KB/frame, FINE: 22,967 KB/frame, VGA: 18,337 KB/frame

1:1    NORMAL: 13,991 KB/frame, FINE: 15,333 KB/frame, VGA: 12,273 KB/frame



L:
16:9    NORMAL: 2,222 KB/frame, FINE: 3,816 KB/frame

4:3    NORMAL: 2,315 KB/frame, FINE: 3,960 KB/frame

3:2    NORMAL: 2,615 KB/frame, FINE: 4,493 KB/frame

1:1    NORMAL: 1,761 KB/frame, FINE: 3,009 KB/frame

M:
16:9    NORMAL: 1,475 KB/frame, FINE: 2,509 KB/frame

4:3    NORMAL: 1,574 KB/frame, FINE: 2,662 KB/frame

3:2    NORMAL: 1,744 KB/frame, FINE: 2,968 KB/frame

1:1    NORMAL: 1,186 KB/frame, FINE: 2,003 KB/frame

5M:
4:3    FINE: 2,287 KB/frame

3M:
4:3    FINE: 1,474 KB/frame

1M:
4:3    FINE: 812 KB/frame

VGA:
4:3    FINE: 197 KB/frame

Battery life:
Based on CIPA standard DB-90: approx. 330 shots*3

Dimensions (W × H × D):
Lens mount unit only: 79.1 mm × 60.9 mm × 40.5 mm
(according to CIPA guidelines)
When mounted on the GXR body: 120.0 mm × 70.2 mm × 45.7 mm
according to CIPA guidelines
Flange back: 27.8 mm

Weight (approx.):
Lens mount unit only Approx. 170 g
When mounted on camera body: Approx. 370 g battery and SD memory card included

Operating temperature:
0 °C to 40 °C

Operating humidity:
90% or less

Storage temperature:
–20 °C to 60 °C

*1    The compression ratios which can be set vary depending on the image size.
*2    A JPEG file is also recorded (the JPEG file may be a FINE- or NORMAL-quality file with the same dimensions as the RAW file or a VGA file 640 × 480 pixels in size). RAW files use the standard DNG format promoted by Adobe Systems Incorporated.
*3    For reference only; actual number of shots varies greatly according to how camera is used. We recommend that you carry spare batteries when in use for extended periods.
